Design of producing well requires the simulation of permafrost thermal state and thaw bulbs around the well cluster.

Oil well operations in permafrost areas cause the formation of thaw bulbs around wellbores that may result in borehole and pipeline buckling failure. Consequently, well design requires the simulation of the permafrost thermal regime and thaw bulbs around the well cluster.



Today, Frost 3D is the most convenient tool for performing such simulations. In order to create a computer model of the borehole thermal influence on the permafrost, the following information is needed:



1. Meteorological data: air temperature variation, wind speed, change in snow cover thickness.

2. Geological soil structure and thermophysical properties around simulated boreholes: thermal conductivity and volumetric heat capacity in thawed and frozen state, initial temperature of the water-ice phase transition, density of dry soil, total gravimetric soil moisture (over all types of soil water), dependence of unfrozen water content on temperature.

3. Temperature and velocity of pumped oil.

4. Well structure and thermophysical properties of used material (cement, thermal insulation, etc.).



Based on this data, Frost 3D creates a three-dimensional simulation model for the thermal influence of the boreholes on permafrost.



Computer model of borehole thermal influence on permafrost

Computer model of boreholes’ thermal influence on permafrost

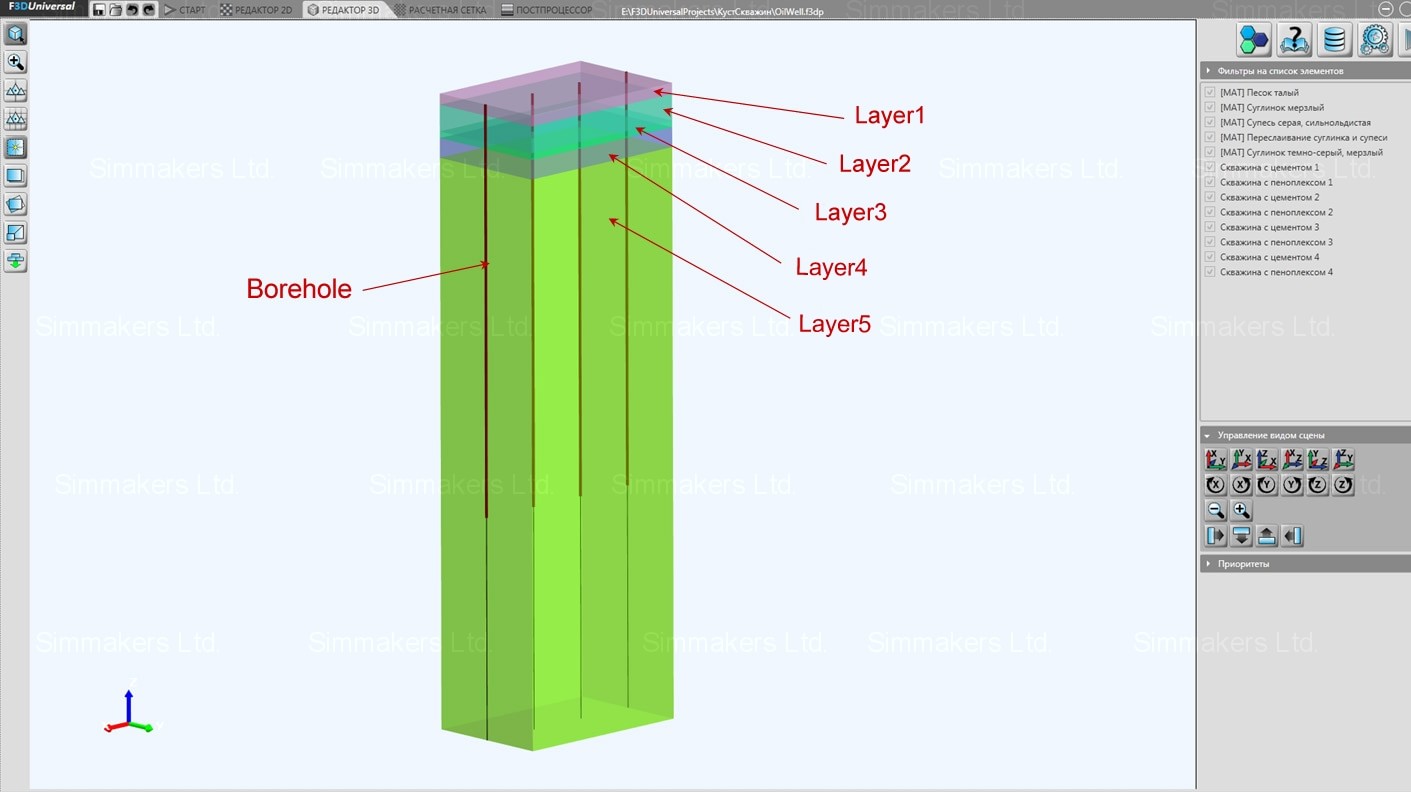

Geometric dimensions of the computational domain (4 production wells and 5 different soil types) are: length – 60 m, width – 40 m, height – 200 m.



Appropriate thermophysical properties are specified for each geological layer.

Parameters Material short text
Layer1 Layer2 Layer3 Layer4 Layer5
Volumetric heat capacity of thawed ground, J/(m3оС) 2.92×106 3.20×106 2.89×106 2.86×106 2.79×106
Volumetric heat capacity of frozen ground, J/(m3оС) 1.83×106 2.20×106 2.01×106 1.92×106 2.19×106
Thermal conductivity of thawed ground, W/(m•оС) 1.86 1.8 1.78 1.8 1.27
Thermal conductivity of frozen ground, W/(m•оС) 2.1 1.88 1.91 1.93 1.85
Total gravimetric soil moisture, % 0.2 0.3 0.25 0.15 0.25
Density of dry soil, Kg/m3 1400 1600 1400 1400 1600
Freezing point, оС 0 -0.2 -0.1 -0.6 -0.2



The dependence of unfrozen water content on temperature is also given for each geological layer.

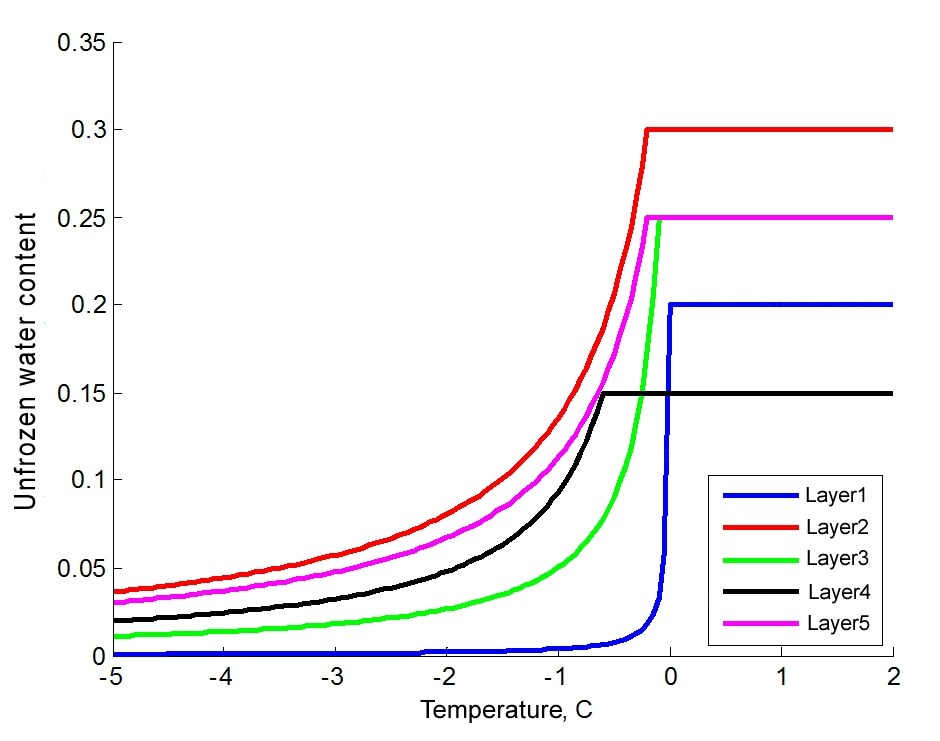

Unfrozen water content on temperature dependence

Dependence of unfrozen water content on temperature



Initial time is specified for vertical temperature distribution over the soil depth.

To consider the influence of air and ground surface on heat transfer, the changes in snow cover thickness are specified.

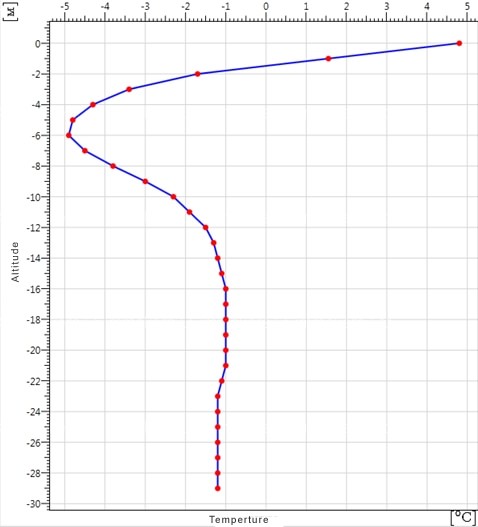

Initial temperature distribution over the soil depth

Initial temperature distribution over the soil depth

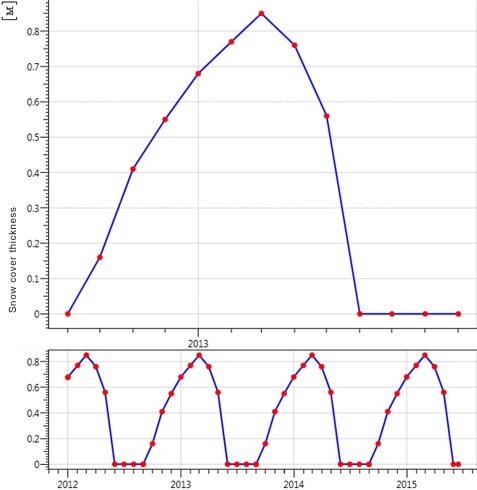

Snow cover thickness and temperature changes

Snow cover thickness and temperature changes

The heat transfer coefficient and changes in air temperature over the time (based on wind speed) are specified on the boundaries of the computational domain and atmosphere by means of boundary conditions.

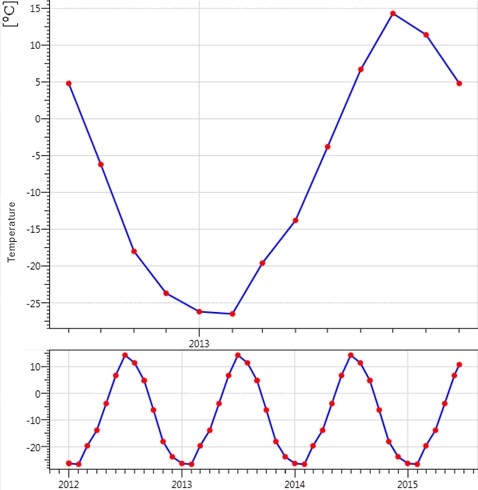

Changes of air temperature over time

Changes of air temperature over time

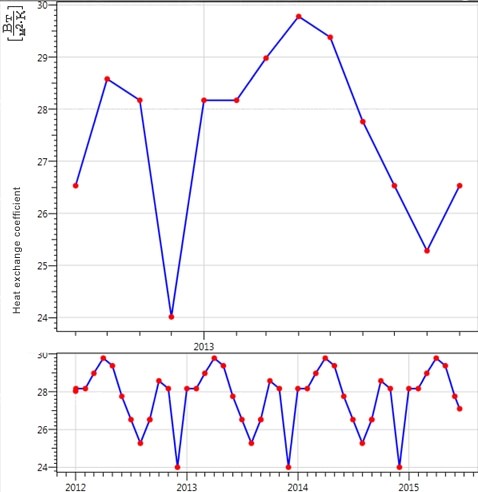

Ground surface and air heat exchange coefficient changes

Ground surface and air heat transfer coefficient changes

On the side surface of the computational domain, heat flow is equal to zero because the left and the right boundaries lie on the plane of symmetry, and the front and back boundaries of the computational domain are at a sufficient distance from the simulated wells (the heat flow from the well does not reach these boundaries).

The heat flow is equal to zero because of identical soil layer and borehole extension below the lower boundary of the computational domain (heat flow through the lower bound is equal to zero). Thermal interaction between the wells and the ground around them are simulated by the third type boundary conditions. Thermal properties, velocity of pumped oil, and borehole heat insulation thickness are taken into account when calculating the heat transfer coefficient between the ground and the borehole wall.

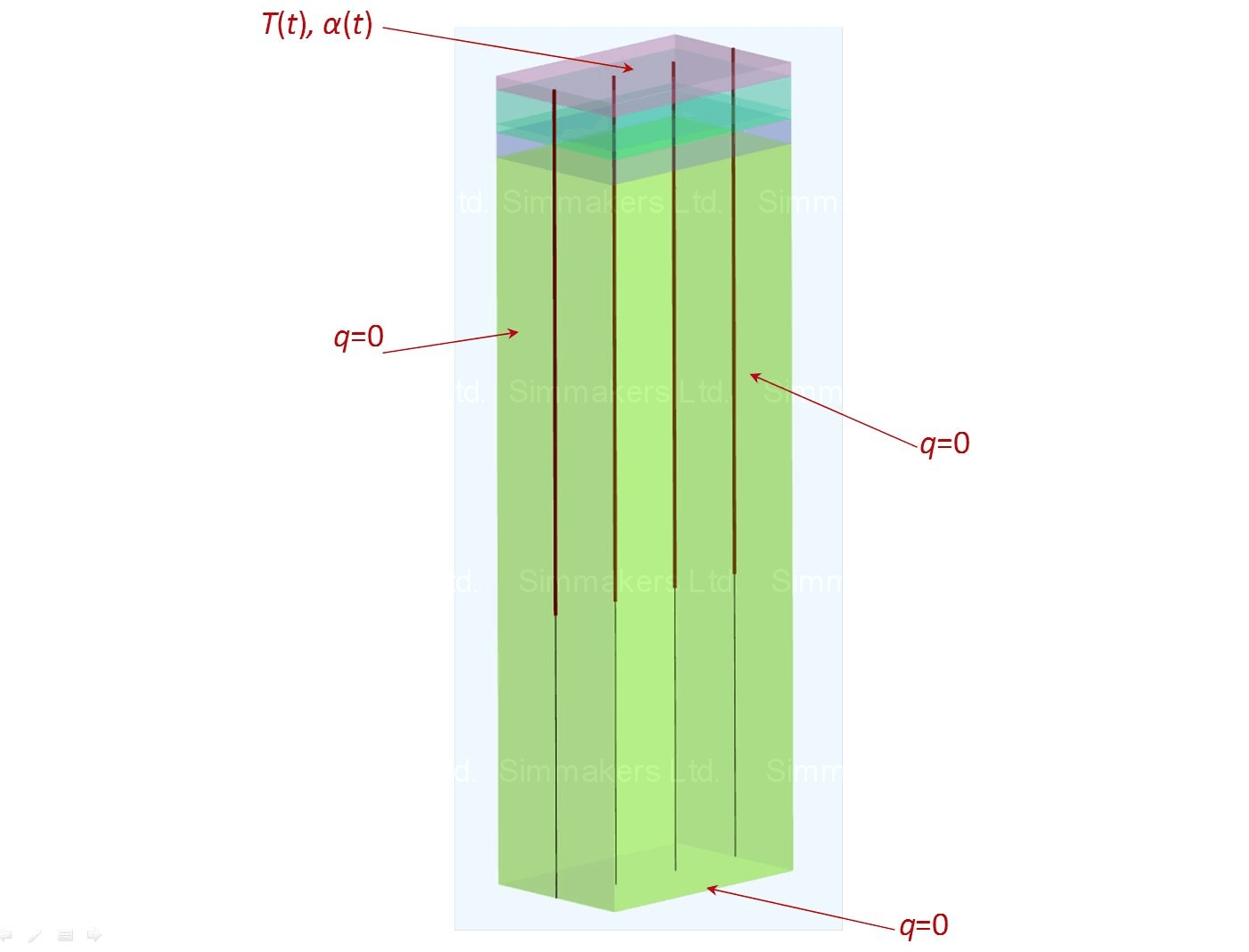

Specification of boundary conditions for borehole thermal analysis

Specification of boundary conditions for borehole thermal analysis



Simulation of bulb thawing and thermal field changes was performed for a 20-year period.

From the simulation results, thermal field distribution around boreholes was analyzed at specific time points in different sections of the 3D simulation area.



Soil thermal field distribution over 5 years in the XZ plane

Soil thermal field distribution over 5 years in the XZ plane



Frost 3D ground analysis

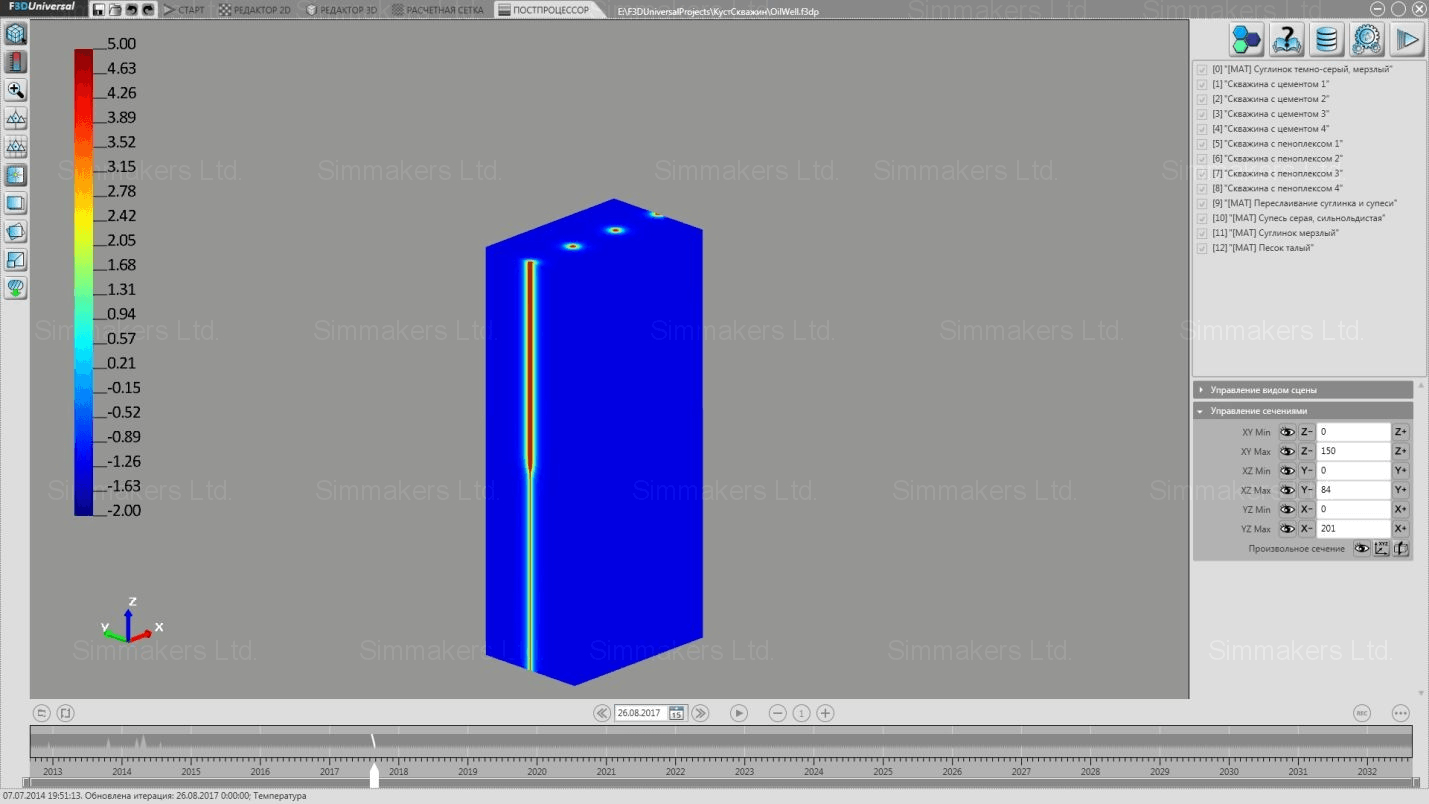

Soil thermal field distribution over 5 years in the YZ plane



Thermal borehole simulation on permafrost

Soil thermal field distribution over 20 years in the XZ plane



Borehole permafrost thawing with Frost 3D

Soil thermal field distribution over 20 years in the XY plane



Thermal field simulation can also be represented with isolines in the cross section of the simulation area.



Thaw front around the borehole

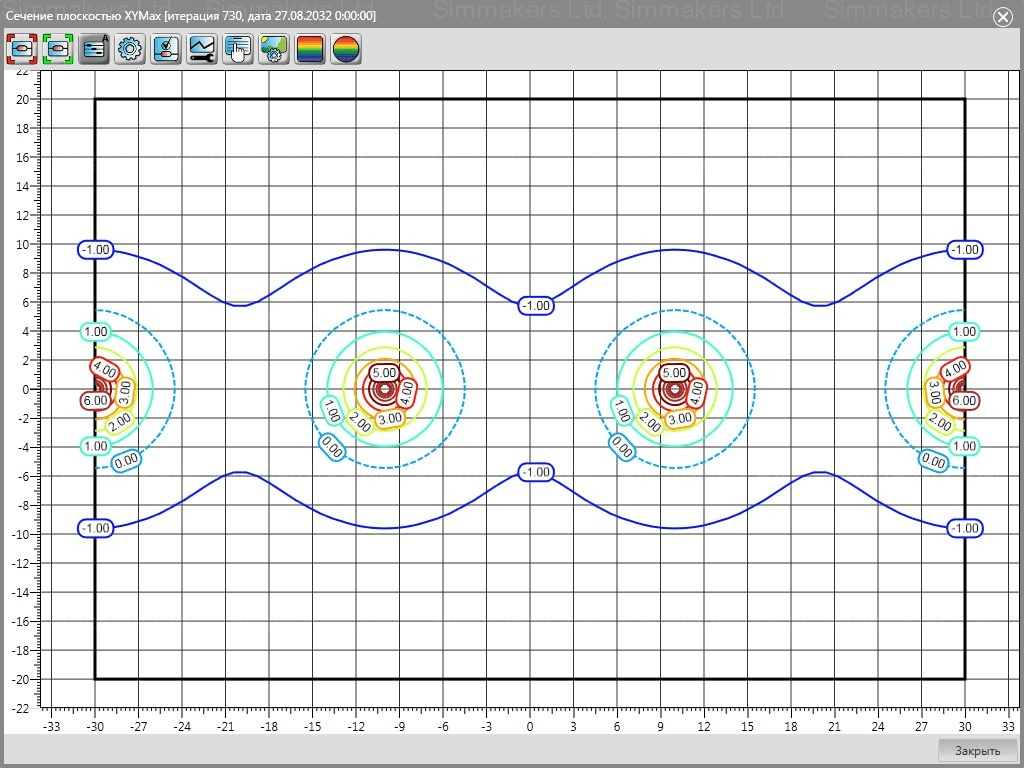

Soil thermal field distribution over 20 years in the 2D plane in the form of temperature isolines



Similarly, we can analyze thaw bulbs around wellbores. The relative distribution of unfrozen water content in the ground is shown below. The red color corresponds to regions of the soil were all ice is melted; the blue color corresponds to regions in which all the moisture is frozen.



Thaw bulbs around well cluster

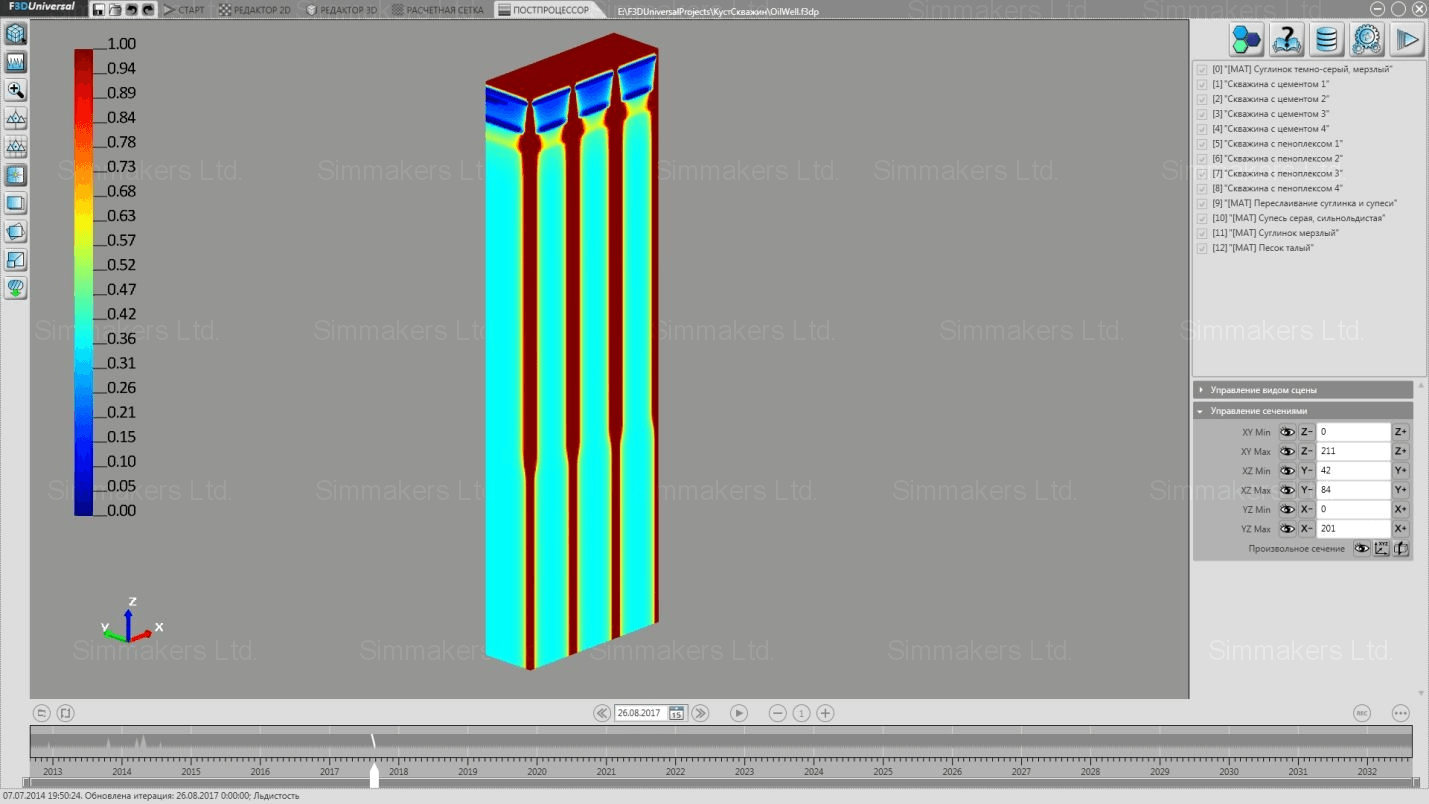

Relative unfrozen water content distribution after 5 years in the XZ plane



Ground thawing around borehole

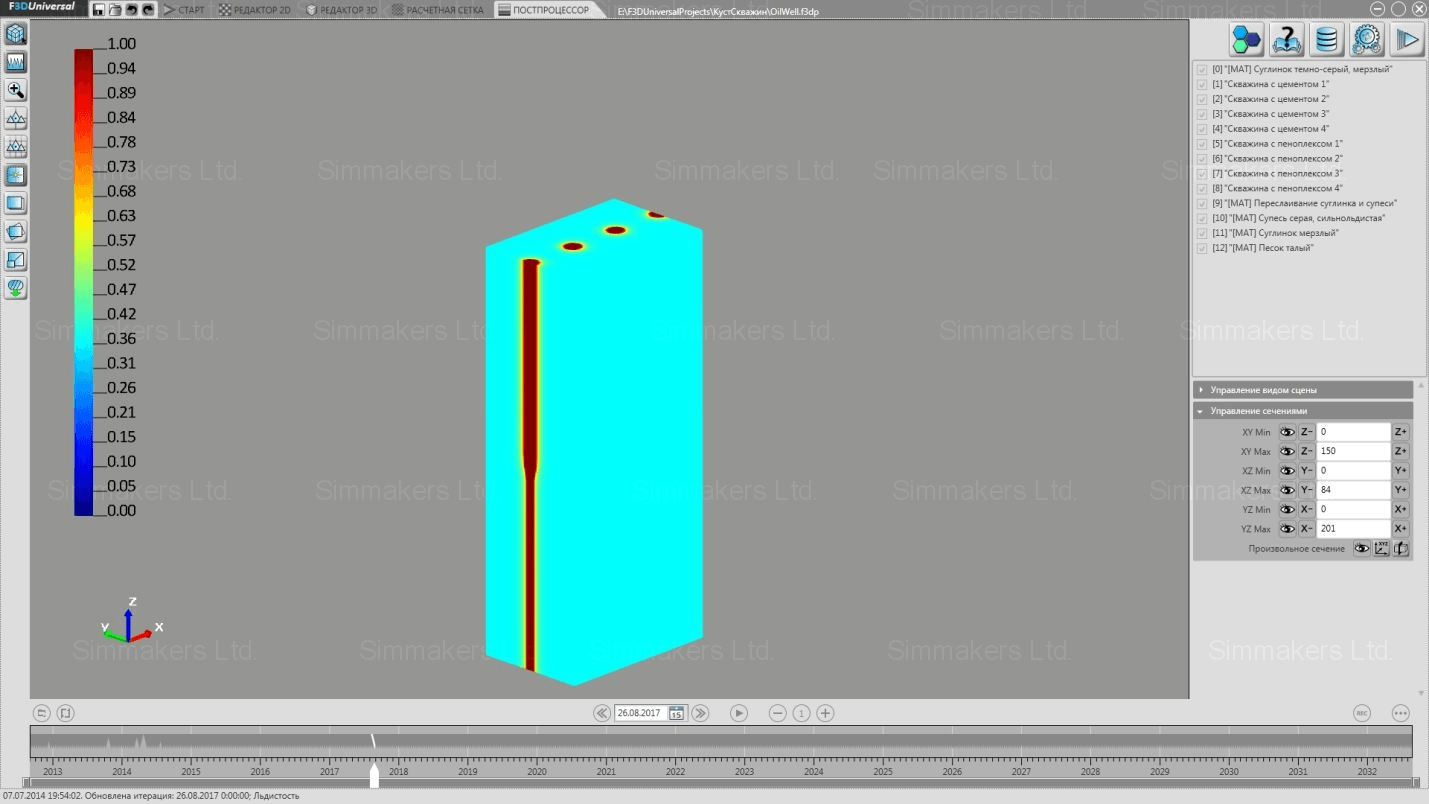

Relative unfrozen water content distribution after 5 years in the XY plane



Thawing of the soil along the oil well

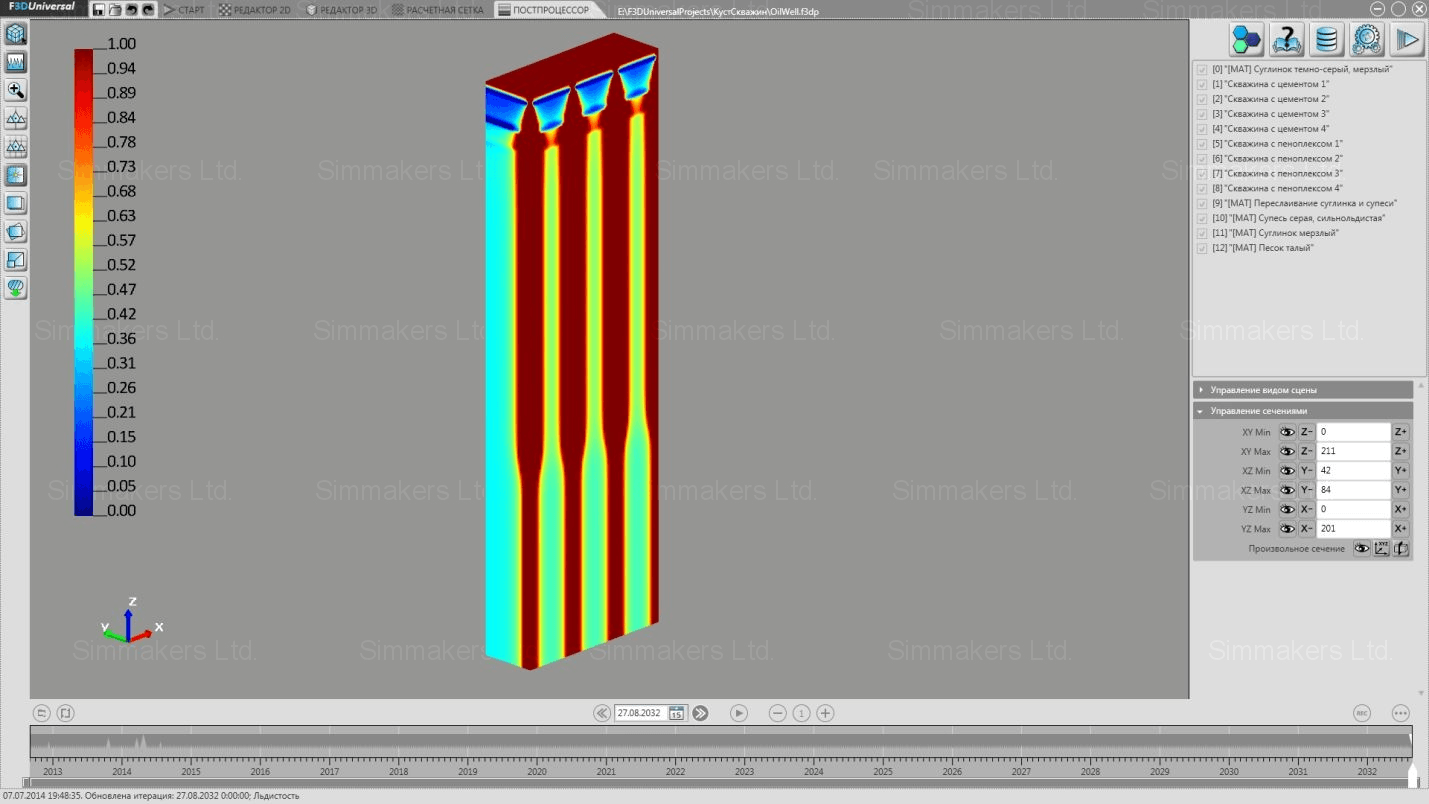

Relative unfrozen water content distribution after 20 years in the XZ plane



Borehole in permafrost

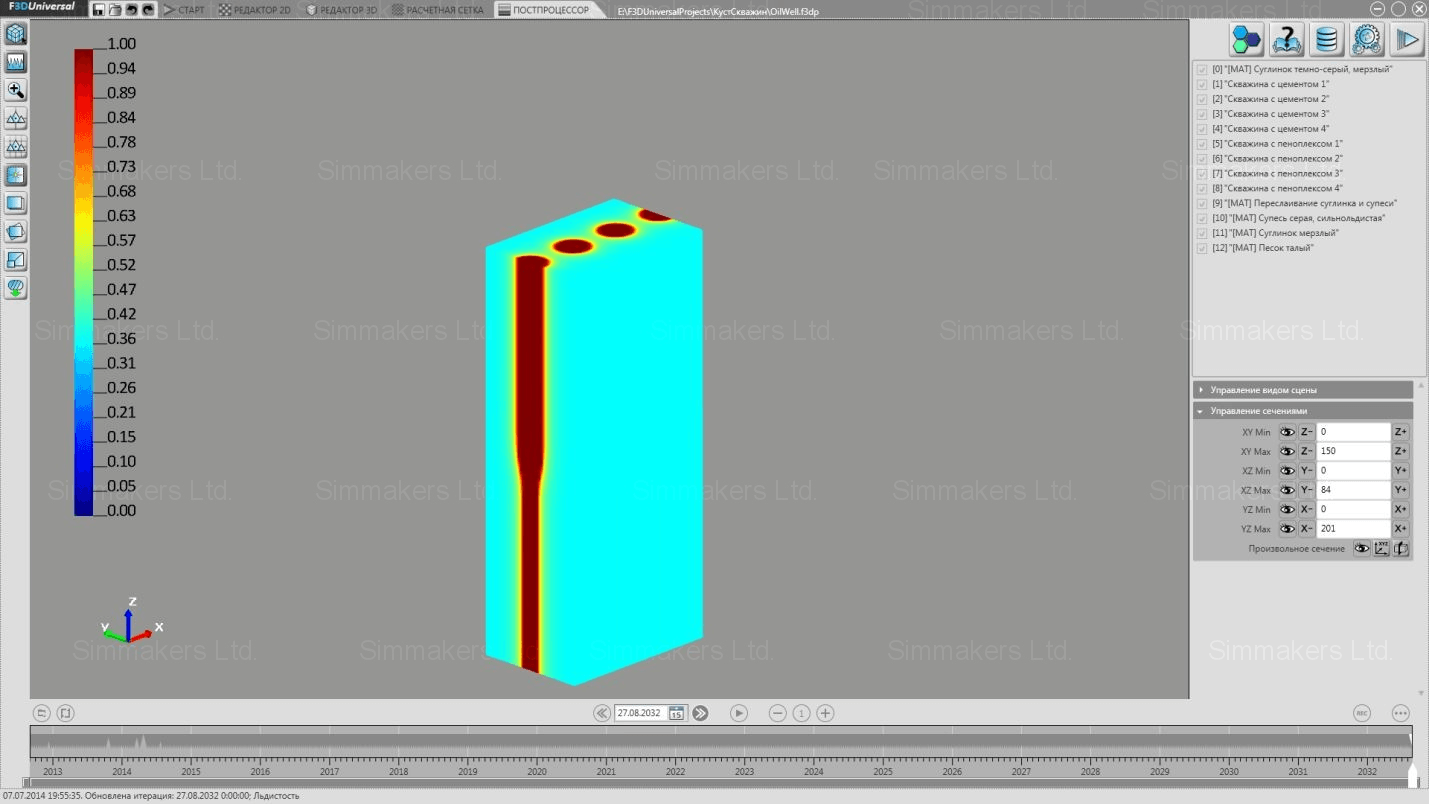

Relative unfrozen water content distribution after 20 years in the XY plane



Thus, visualizing the relative distribution of unfrozen water content in the cross section of the boreholes, we can determine the size of thaw bulbs around wellbore at specified points in time, and draw conclusions regarding the effectiveness of borehole insulation and the selected distances between them.



Thaw bulbs around borehole

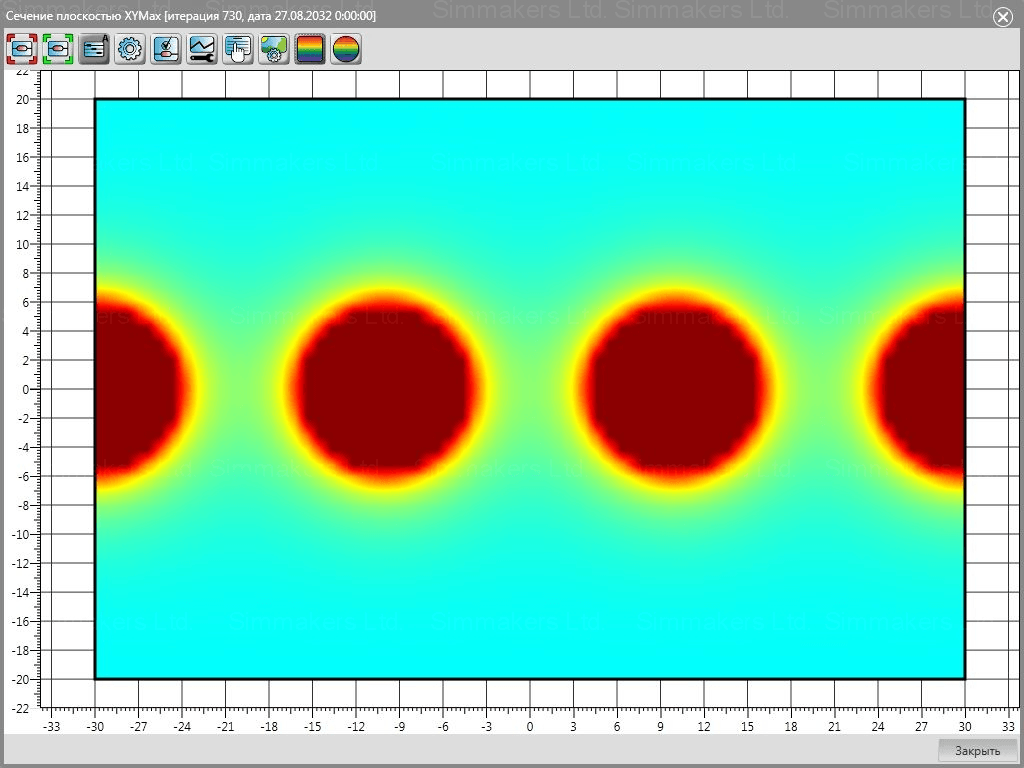

Relative unfrozen water content distribution after 20 years in the 2D plane
